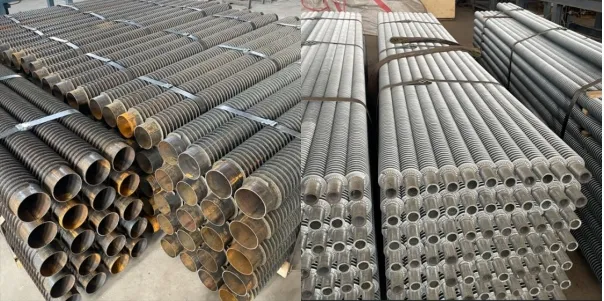

Finned tubes are a type of heat exchange tube that is installed with fins on the surface of ordinary straight tubes by welding, winding, or rolling. This increases the surface area to achieve superior heat exchange efficiency.
Working Principle: Heat is transferred from the hot fluid to the fins through the tube wall, then to the cold fluid. The increased area reduces thermal resistance and destroys the boundary layer for maximum performance.
High transfer efficiency. Tube diameters: 25mm-108mm. Fin height: 10mm-30mm. Thickness: 0.5mm-2.0mm.
Metal strip wrapped around the base tube, ideal for high-temperature environments.
Firmly fixed by welding, suitable for high-pressure industrial environments.
Suitable for low-temperature environments with customizable fin spacing (3mm-10mm).
| Item | Details |
|---|---|

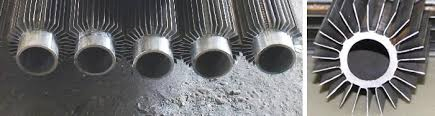

| Type | Extruded fin - tube |
| Manufacturing Process | Insert smooth core tube into aluminum tube, then extrude fins. |
| Base Tube Material | Stainless steel, carbon steel, alloy, titanium, copper, etc. |
| Fin Material | Aluminum strip, copper strip |
| Dimensions | Base diameter: 10-51mm; Fin pitch: 2-15mm; Fin height: 5-16mm |
| Advantages | High vibration resistance, stable thermal resistance, easy cleaning, no galvanic corrosion. |
| Max Temperature | 280 °C - 300 °C |

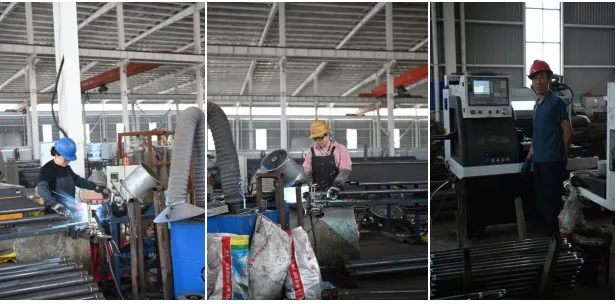

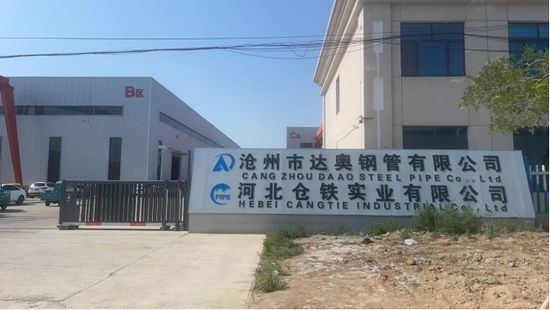

Our facility is one of the large enterprises specializing in industrial tubing solutions. Located in a major manufacturing base, we benefit from superior logistical connections to international ports, ensuring efficient global delivery.
